6.25G 850nm MINISFF双纤双向LC插拔光？
Description
6.25G 850nm MINISFF双纤双向LC插拔光？
产品特征
● 高可靠、全金属外壳、抗振动设计
● 紧凑的结构设计，超小？槌叽
● 事情速率可达6.25Gbps
● 传输距离可达300m(62.5/125um多模光纤)
● 单路发射光纤通道，内置850nm波长光发射组件
● 单路吸收光纤通道，内置850nm波长光吸收组件
● 发射信号使能控制，无光告警功效
● 可插拔标准LC光纤毗连器接口，利便动态和无邪的设置数据毗连
● 3.3V单电源供电
● 宽事情温度规模 : -40℃~85℃
产品应用
● 以太网、Sonet/SDH、交流机等数字光纤通讯系统
● 高可靠高数据率点对点光纤通讯
● 数字雷达阵列
● 光背板传输

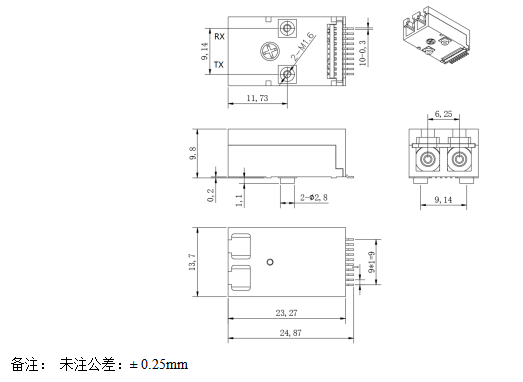

形状尺寸

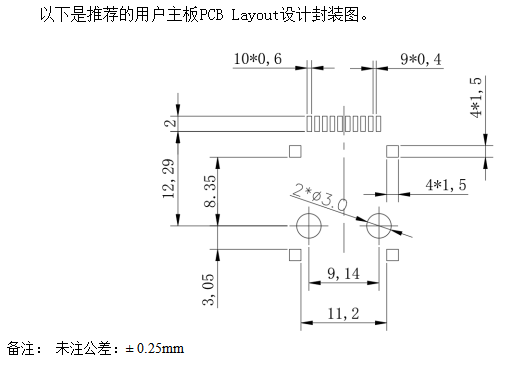

PCB推荐结构
订购须知
|
型号 |
封装 |
速率 (Gb/s) |
距离 (m) |
波长 (nm) |
发射功率 (dBm) |
吸收迅速度 (dBm) |
温度 (℃) |
|
FTMF-8562-02I |
LC |
6.25 |
300 |
850 |
-8.2~-1 |
-12 |
-40~85 |
注：本产品有天下产化型号可选
本产品为FTMF系列，仅展示部分参数，若有需要，请联系尊龙凯时 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
