参数/Parameters

条件/Conditions

规格/Specifications

单位/Unit

Min.

Max.

事情温度/Operating Temperature

-5

65

^oC

事情湿度/Operating Humidity

无冷凝情形/Non-Condensing Environment

0

95

%RH

存储温度/Storage Temperature

-40

85

^oC

存储湿度/Storage Humidity

无冷凝情形/Non-Condensing Environment

0

95

%RH

参数/Parameters

条件/Conditions

规格/Specifications

单位/Unit

Min.

Typ.

Max.

通道数/Number of Channels

96

CH

通道距离/Number Channel Spacing

50

GHz

ITU 频率/ITU Frequency

On ITU grid in C-band Even

196.00

192.05

THz

ITU波长/ITU Wavelength

On ITU grid in C-band Even.

1529.553

1561.013

nm

中心波长带宽/CenterWavelength Channel Passband

Centered at each ITUchannel frequency

± 0.1

nm

3dB带宽/3dB Channel Bandwidth

Clear channel bandwidth defined by passband shape. For each Channel.

0.25

nm

20dB带宽/20dB Channel Bandwidth

Clear channel bandwidth defined by passband shape. For each channel.

0.8

nm

ITU波长通道插损/

Optical Insertion Loss at ITU grid

Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations with connectors.

7.0

dB

相邻通道隔离度/

Adjacent Channel Isolation

Ratio of peaktransmission to themaximum transmissionover both adjacent ITUwavelengths

20

dB

非相邻通道隔离度/

Non-Adjacent,Channel Isolation

Ratio of peaktransmission in channel

passband to themaximum transmissionover all non-adjacentITU wavelength

30

dB

总串扰/Total Crosstalk

Ratio of power inchannel to power in allother ITU wavelength

17

dB

插损一致性/

Insertion Loss Uniformity

The difference between the maximum and minimum of passbandacross all channels

1.7

dB

偏向性/Directivity(Mux Only)

Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n

40

dB

回损/Optical Return loss

Input & output ports

40

dB

偏振相关消耗/

Polarization Dependent Loss in Clear Channel Band

Worst-case value measured in ± 20GHz around ITU wavelength for each port.

0.9

dB

偏振模式色散

Polarization Mode Dispersion

Maximum differentialgroup delay withinreference ITUwavelength

1.0

ps

色度色散/Chromatic Dispersion

Maximum change rateof group delay versuswavelength withinreference ITUwavelength

-35

+35

ps/nm

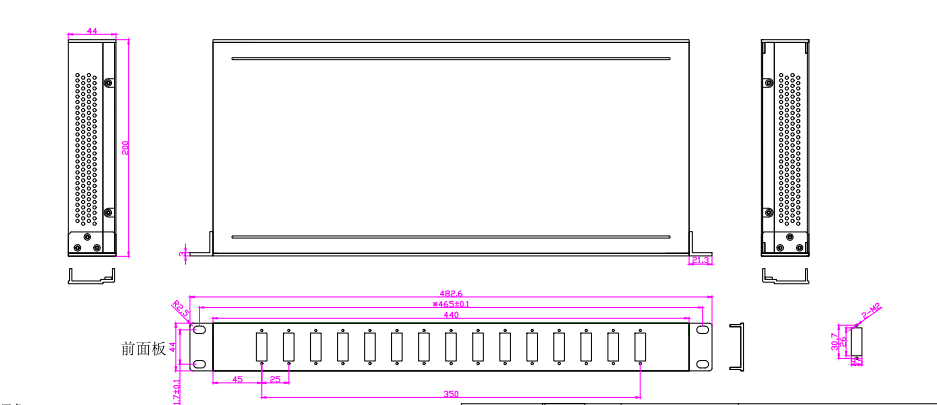

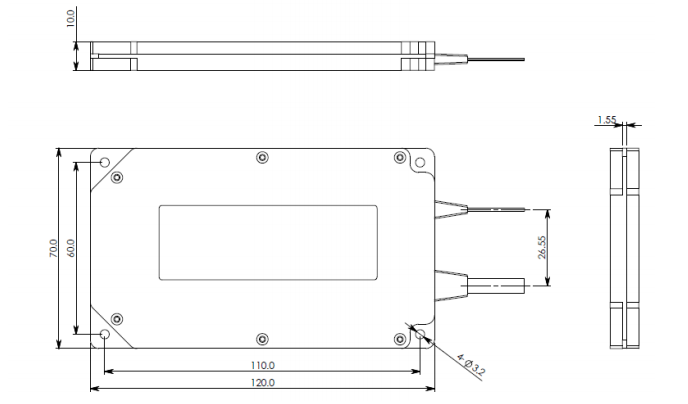

尺寸/Dimensions

120 x 70 x 10/484 x 200 x 44

mm

光纤类型/Fiber Type

公共端/Common SMF-28e fiber with 900um loose tube/ SMF-28e 加900um松套管

通道端/Channels: SMF-28eRibbons

光纤长度/Fiber Length

输入端/Common

1000mm ± 50mm with 900um loose tube/输入纤长1000mm ± 50mm 900um套管

输出端/Channels

Ribbon 500mm± 20 mm and Fan out 500mm± 30mm with 900um loose tube

/输出带纤500mm± 20 mm，加分支器纤长500mm± 30mm

公共端/Common

颜色/Color

白/white

带纤标识/RibbonIdentification

带纤最后贴数码贴标识

/Label with ribbon number will be placed close to end-points

毗连器类型/Connector Options

输入端/Common

LC/UPC

输出端/Channels

LC/UPC

带纤光纤标识/Fiber Identification in Ribbon

1

蓝/Blue

2

橙/Orange

3

绿/Green

4

褐/Brown

5

灰/Grey

6

白/White

7

红/Red

8

黑/Black

9

黄/Yellow

10

紫/Purple

11

粉/Pink

12

水/Aqua

*可按客户要求定制/Customized design available

FT-13

XAWG

X

XX

X

XXX

X

X

X

XX

Type

Band

Number of Channels

Spacing

1st Channel

Chip Type

Package

Fiber Length

(Total Length)

In/Out Connector

GAWG=Gaussian AWG

C=C-Band

L=L-Band

D=C+L-Band

X=Customize

16=16-CH

32=32-CH

40=40-CH

48=48-CH

96=96-CH

XX=Special

1=100G

2=200G

5=50G

X=Special

C62=C62

H61=H61

C60=C60

H59=H59

.

XXX=special

G=Gaussian

F=Flat Top

M=Module

R=Rack

X=Special

1=0.5m

2=1m

3=1.5m

4=2m

X=Specify

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=LC/APC

6=LC/PC

7=ST/UPC

X=Specify
